FFT Transformer

Description:

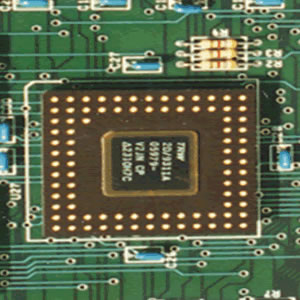

This board embeds the TRW 2310 butterfly chip. It is able to process an input stream of a signal digitally sampled (@ 20 Msps) and to produce an output stream of samples containing the Fourier transform of the input signal.


Features:
  • Maximum input/output sampling frequency: 20 Msps
  • Tapering window: programmable
  • Zero padding: programmable
  • Number of bits: 24
