Switch Array Pattern Generator

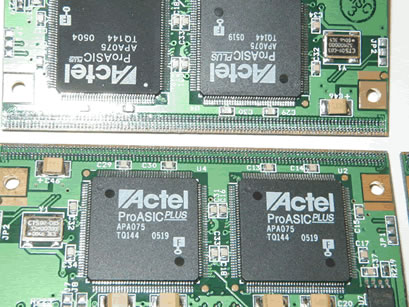

This board embedding 4 Actel FPGAs and 1 Microprocessor is devoted to generate ultra fast 1-D Switch Array patterns.

The board can be interconnected in daisy chain to extend the patter length as long as required.

The board can also be stacked in order to implement a 2-D Switch Array pattern generator based on a look up table or real time implemented algorithm.

Features:
  • Pattern generation speed: 33 Mega Pattern per second
  • Pattern length: 216 bit
  • Possibility of interconnection in daisy chain to extend the pattern length
  • Internal, External and Manual synchronization
  • PPC-USB interface and Windows software application
  • Size 10 by 5 cm
  • Pitch: 8 mils.
