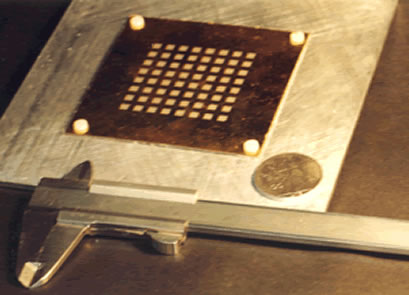

23-24 GHz Aperture Array Antenna
  • 8 x 8 array of apertures supplied by strip-line
  • Matched in air (dielectric constant 1)
  • 50 Ohm, ROS<1.8 over 22.8-24.2 GHz
  • SMA connector
23-24 GHz Aperture Array Antenna


23-24 GHz MMIC Tx/Rx
  • Functions: Receiver, Transmitter
  • Bandwidth: 20-26 GHz (ROS<1.8)
  • HP low cost MMIC components
  • Microstrip circuit assembly
  • WR-24 waveguide RF interface (ROS<1.8)
  • SMD IF filter and AGC, output 50 Ohm
  • Size: 5 by 2.5 cm

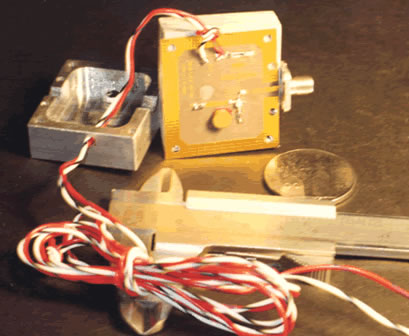

X-band DRO
  • DRO frequency: 10.5 GHz
  • Phase Noise @ 10 KHz: -110 dBm/Hz
X-band DRO

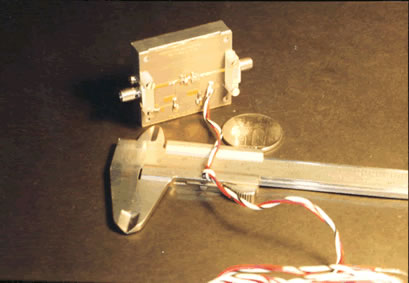

X-band LNA Amplifier
  • Bandwidth: 10-12 GHz
  • Gain: 12 dB
  • Noise Figure: 1.2 dB
X-band LNA Amplifier

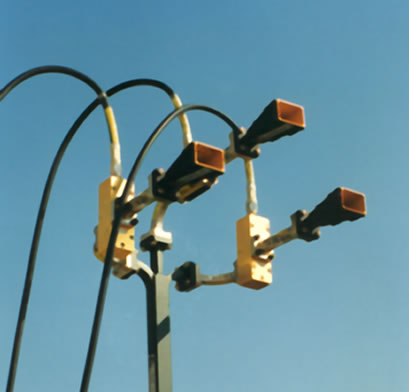

35 GHz 2-D Rx Mono Pulse Antenna
  • Bandwidth: 32-38 GHz
  • Gain: 25 dB
  • Noise Figure: 5 dB
35 GHz 2-D Rx Mono Pulse Antenna
